- New Plastic Mini Alpine Snow and Ice Roof Guards
- Features: Low profile, forward-facing plate design ~ Tapered Base with waffle pattern design allowing for a more secure bonding with adhesive mouting ~ 2 starter points for an easier mechanical mounting
- Measures Approximately: Length: 4-1/4 inches / Width: 3 inches / Height: 2-1/2 inches / Base Width: 1-1/2 inches ~ Color: Clear ~ Made in USA!

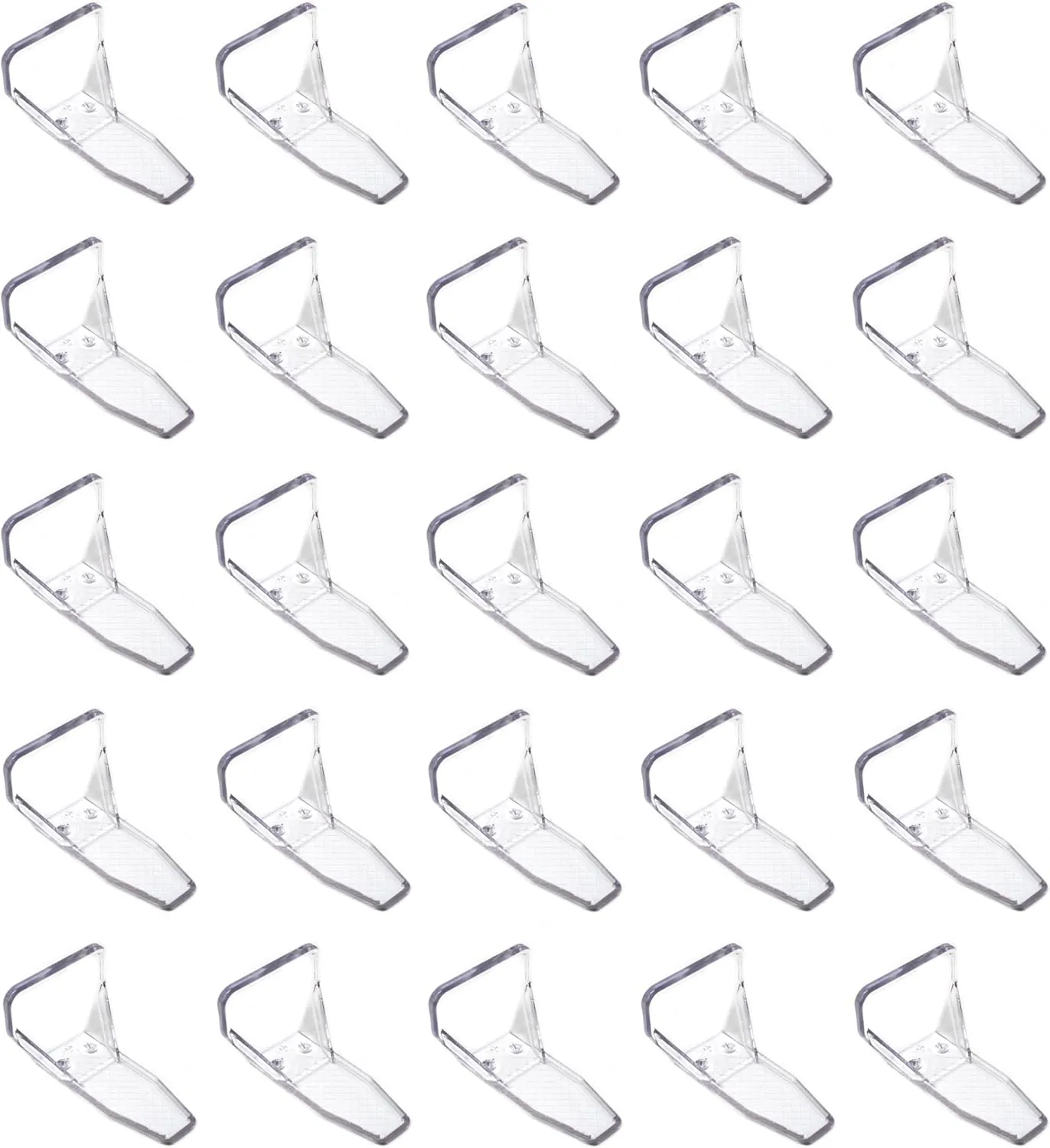

- Kit Includes: (25) Mini Alpine Snow Guards
- Fits: Designed for use on metal with at least 1.5" panel flat area. They fit the most popular 36” R-panels with 12” rib spacing or 9” rib spacing without rib straddling.
- Adhesive Fasten – We recommend using SureBond SB-190 adhesive with our snow guards. The installation for adhesive requires 28 days or (672 Hours) at 50 Degrees (F) or above to achieve full cure. Temperatures below 40 Degrees (F) will delay cure time, until temperatures reach 50 Degrees (F) or above to completely cure. Spring and Summer is the best time to install adhesive mounted snow guards to insure 100% cure. Do Not use for Copper or lead coated Copper Roofs. (Hardware NOT Included)
- Mechanically Fasten – We recommend using (#14 Roofing screw) 1.5" Metal Purlin screws or 2" Self Tapping Wood Purlin Screws with a sealant around guard base and screw holes to provide a watertight and leak free seal. (Hardware NOT Included)
- Please Note: Each application is unique per snow guard type, please note one tube of sealant should install approximately 6 to 8 large snow guards or approximately 10 to 20 mini snow guards, depending on their design shape and size.
Multiple Kit types available. Select the correct installation kit needed.

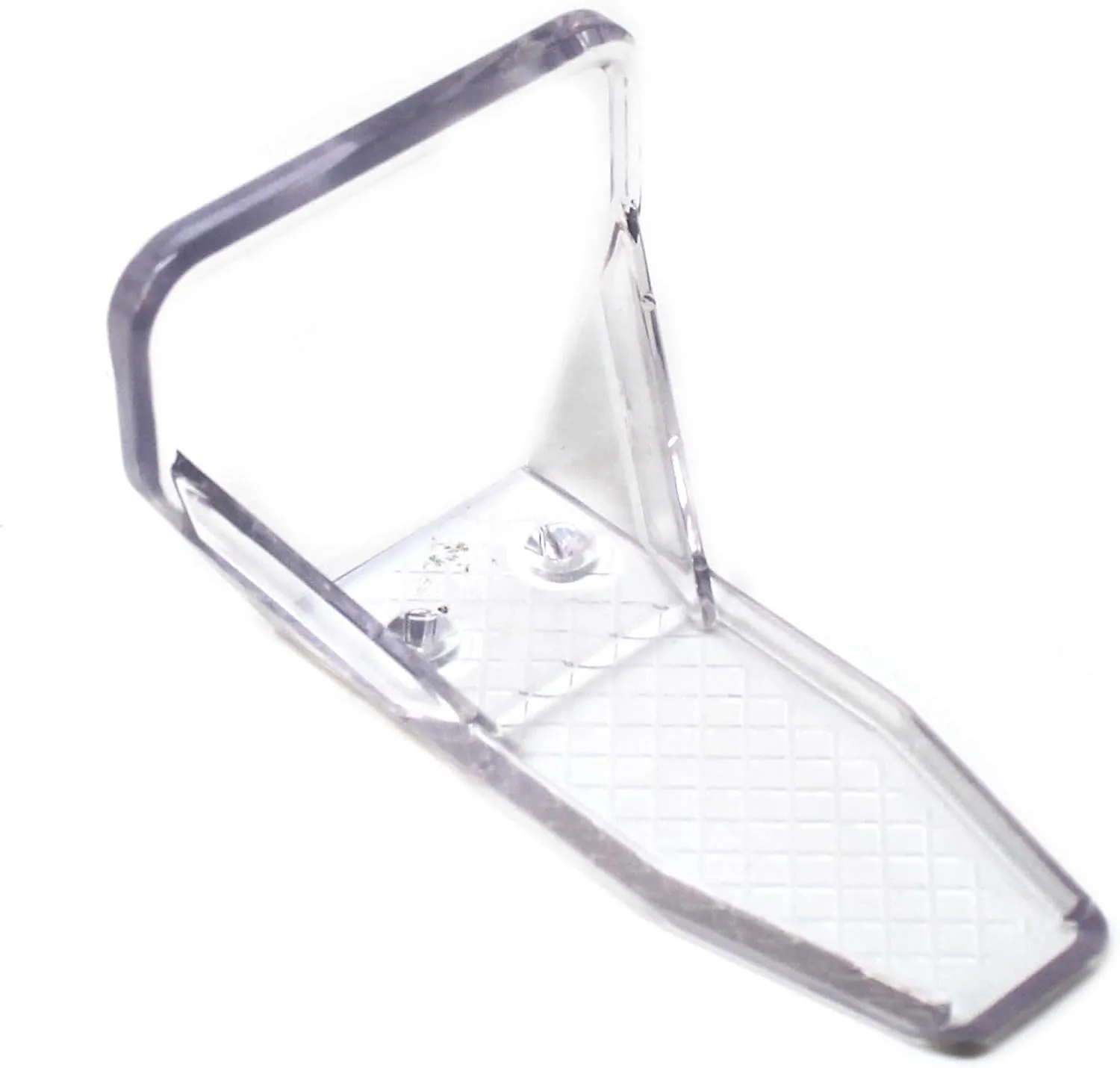

Our JSP Brand Clear Alpine Mini Roof Snow and Ice guards are designed to keep snow and ice off metal roofs. These strong and durable guards will protect your property, pets and people from injury and liability claims from injury. Please use recommended silicone sealant around the base of the guard to provide a watertight leak free seal. Prevents large sections of sliding snow and ice.
Alpine Mini Snow Guards with or without Installation Kit
Made of heavy-duty, strong, durable UV stable polycarbonate material
Prevents damages and injuries from sliding snow and ice buildup.
Protect your property, people, and pets from damage and injury.
Perfect for both DIY homeowners and professional commercial roofers
Low profile, flat forward-facing plate design
Easy Application using either adhesive or mechanically fastening installation methods
A tapered base with waffle pattern design surface allows for a more secure bonding with n adhesive fastening.
Has 2 starter points for an easier mechanical fastening
Made in USA
Multiple Kits Options:
1. (25) Snow Guards Only
2. (25) Snow Guards & (1) tube of SureBond SB-190 Adhesive
3. (25) Snow Guards & (50) Metal 1.5" Screws & (1) tube of Sealant
4. (25) Snow Guards & (50) Wood 2" Screws & (1) tube of Sealant
Product Specifications:
Style: Mini Alpine
Material: 100% Pure Virgin UV Stable Polycarbonate
Manufacturer: JSP Manufacturing
Color: Clear

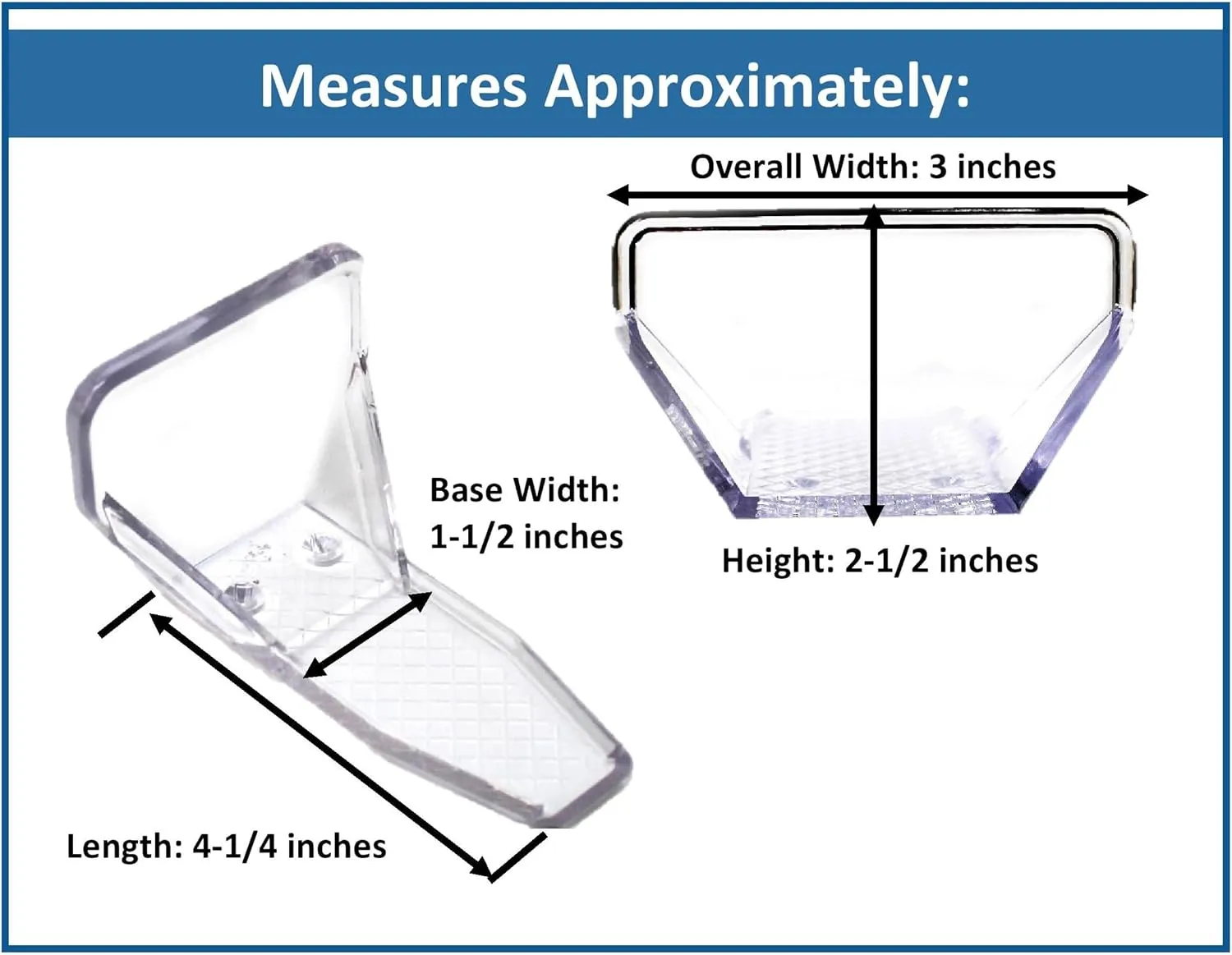

Measures Approximately: see images
Length: 4-1/4 inches
Width: 3 inches
Height: 2-1/2 inches
Base Width: 1-1/2 inches
Fits:
Designed for use on metal with at least 1.5" panel flat area. They fit the most popular 36” R-panels with 12” rib spacing or 9” rib spacing without rib straddling.
NOT recommended for placement only in isolated areas such as doorways, vents, chimneys, and partial roof sections.
Installation Methods:
Adhesive Fasten – We recommend using SureBond SB-190 adhesive with our snow guards. The installation for adhesive requires 28 days or (672 Hours) at 50 Degrees (F) or above to achieve full cure. Temperatures below 40 Degrees (F) will delay cure time, until temperatures reach 50 Degrees (F) or above to completely cure. Spring and Summer is the best time to install adhesive mounted snow guards to insure 100% cure. Do Not use for Copper or lead coated Copper Roofs
Tip: It is recommended to clean the roof surface with isopropyl alcohol or panel wipes before installation.
Please Note:
*Each application is unique per snow guard type, please note one tube of adhesive should install approximately 6 to 8 large snow guards or approximately 10 to 20 mini snow guards, depending on the size of their surface design and bonding area.
**The recommended adhesive has a release factor that will not cause metal panel damage or roof leaks, so in the event of a release and are loosened or knocked off, they can be remounted to the same spot.
Mechanically Fasten – We recommend using (#14 Roofing screw) 1.5" Metal Purlin screws or 2" Self Tapping Wood Purlin Screws with a sealant around guard base and screw holes to provide a watertight and leak free seal.
Please Note:
Each application is unique per snow guard type, please note one tube of sealant should install approximately 6 to 8 large snow guards or approximately 10 to 20 mini snow guards, depending on their design shape and size.
