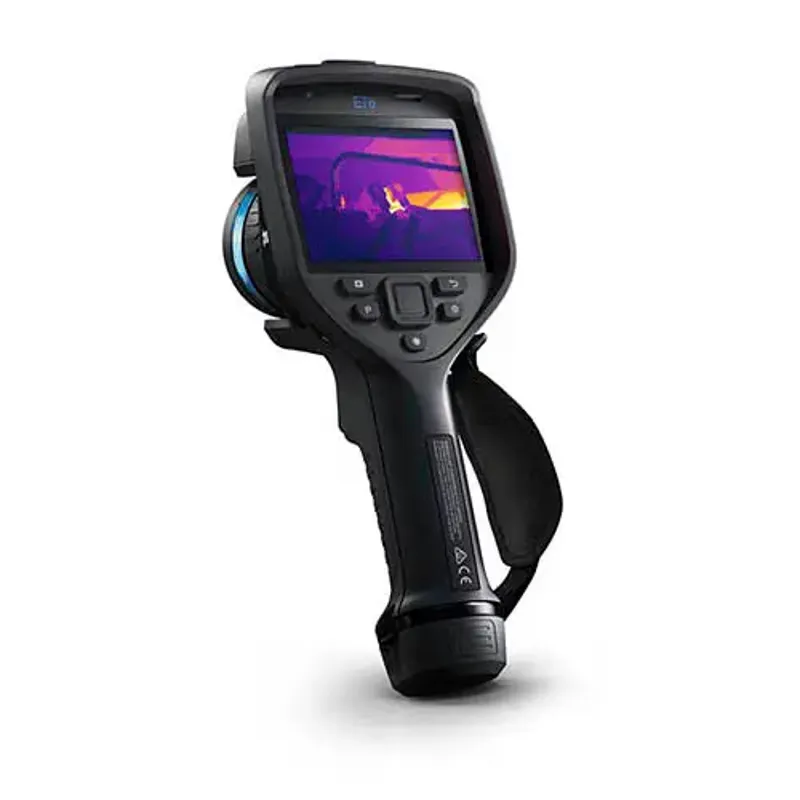

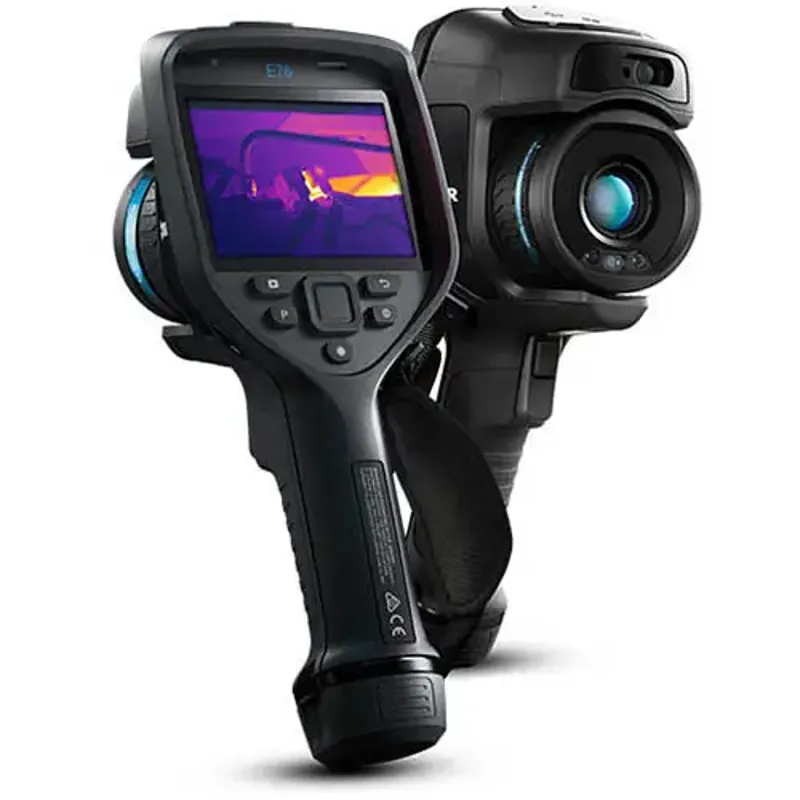

The Teledyne FLIR E76-24-42 Advanced Thermal Imaging Camera delivers outstanding thermal inspection performance with interchangeable AutoCal lenses that cater to both close-up and wide-area inspections. Whether you are assessing electrical systems or large-scale building envelopes, the 24° and 42° lenses ensure optimal field of view and detail. With a crisp 320 x 240 thermal resolution, enhanced further by MSX and UltraMax technologies, this camera provides unmatched clarity and precision in image data.

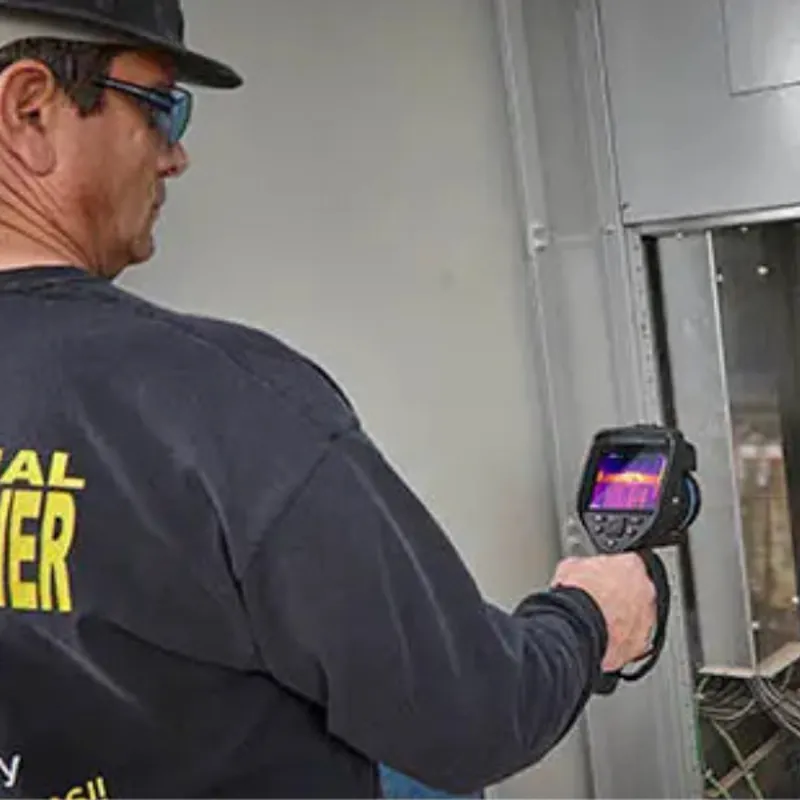

Designed for demanding field work, the E76 integrates voice annotation, laser-assisted autofocus, onboard routing software, and professional reporting capabilities via FLIR Thermal Studio Pro. Its rugged construction and intuitive interface make it ideal for predictive maintenance, safety inspections, and quality control. With a wide temperature range, automatic GPS tagging, and high-speed 30 Hz image capture, the E76 stands out as a high-performance tool for professionals who need fast, accurate thermal analysis.
What's Included:
- Teledyne FLIR E76 Thermal Imaging Camera
- 24° lens (17 mm)
- 42° lens (10 mm)
- Rechargeable Li-ion battery
- FLIR Thermal Studio Pro software
- Transport case
- Charging accessories
Features
Interchangeable AutoCal Lenses
The 24° and 42° lenses automatically calibrate for optimal performance and are ideal for both safe-distance inspections and wide-area imaging.
MSX Technology
Enhances thermal images with visible light detail for clear identification of problem areas directly within the IR image.
UltraMax SuperResolution
Combines multiple images to create one high-resolution image with four times the thermal pixels, providing better clarity and accuracy.
Laser-Assisted Autofocus
Ensures precise focusing on targets, even from a distance, for consistent thermal imaging accuracy.
Teledyne FLIR Thermal Studio Pro
Professional software suite that allows efficient image management, analysis, and report generation to streamline workflow.
Inspection Route Integration
Built-in inspection route capabilities guide users through predefined paths, optimizing inspection efficiency and image organization.
Voice and Text Annotation
Record 60-second voice notes or input text using the touchscreen keyboard to document observations directly on images.
Robust Display and Interface
4" touchscreen with 640 x 480 resolution, auto-rotation, and intuitive controls provide clear visuals and easy operation.
Versatile Connectivity
Features Bluetooth, Wi-Fi, USB 2.0, and DisplayPort interfaces for fast data transfer and external display output.
Durable and Weather-Resistant
IP54-rated casing with resistance to shock, vibration, and temperature extremes ensures reliability in tough conditions.
What's Included
Included with Your Purchase:
- Teledyne FLIR E76 Thermal Imaging Camera
- 24° lens (17 mm)
- 42° lens (10 mm)
- Rechargeable Li-ion battery
- FLIR Thermal Studio Pro software
- Transport case
- Charging accessories
Specifications
- IR Resolution: 320 x 240 pixels
- Image Frequency: 30 Hz
- Thermal Sensitivity (NETD): <50 mK at 30°C
- Spectral Range: 7.5 - 14 µm
- Focus: Continuous LDM, One-shot LDM, One-shot contrast, Manual
- Digital Camera: 5 MP with LED photo/video lamp
- Display: 4" LCD, 640 x 480 pixels, auto-rotation
- Zoom: 1-4x continuous digital
- GPS: Automatic image tagging
- Image Storage Modes: Infrared, Visual, MSX, Picture-in-Picture, Gallery
- Image File Format: JPEG with measurement data
- Video Output: DisplayPort over USB Type-C
- IR Video Recording: Radiometric (.csq), Non-radiometric H.264
- Communication Interfaces: USB 2.0, Bluetooth, Wi-Fi, DisplayPort
- Storage Media: Removable SD card
- Operating Temperature Range: -15 to 50°C (5 to 122°F)
- Storage Temperature Range: -40 to 70°C (-40 to 158°F)
- Shock/Vibration Protection: 25g/2g, IP54 rated
- Color Palettes: Iron, Rainbow, Rainbow HC, White Hot, Black Hot, Arctic, Lava
- Battery Type: Rechargeable Li-ion
- Battery Operating Time: Over 2.5 hours at 25°C
- Accuracy: ±2°C or ±2% of reading
- Object Temperature Ranges: -20 to 120°C; 0 to 650°C; Optional 300 to 1000°C
FAQ
Q: What are the included lenses used for?

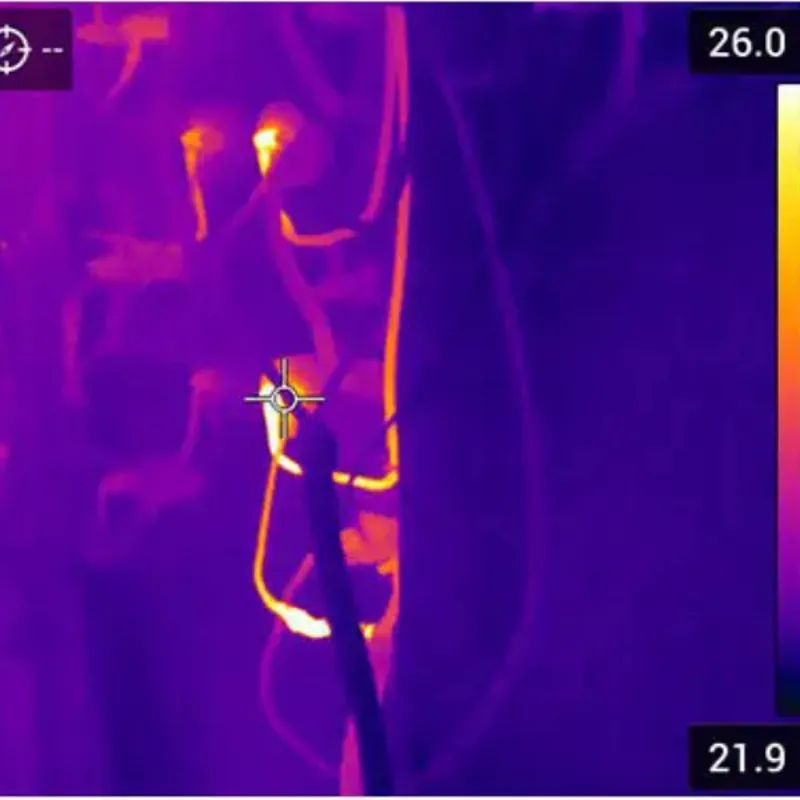

A: The 24° lens is ideal for safe-distance electrical inspections, while the 42° wide-angle lens is great for large building scans.
Q: What does UltraMax do?
A: UltraMax increases image resolution by combining multiple images to reduce noise and improve pixel density.
Q: Can this camera be used for route-based inspections?
A: Yes, it supports inspection routing through FLIR Thermal Studio Pro and the Route Creator plugin.
Q: Does the camera support voice notes?
A: Yes, you can add up to 60 seconds of voice annotation to images or videos via the built-in mic or Bluetooth.
Q: Is it suitable for outdoor use?
A: Absolutely, with its IP54 rating and wide operating temperature range, it’s built for field durability.
