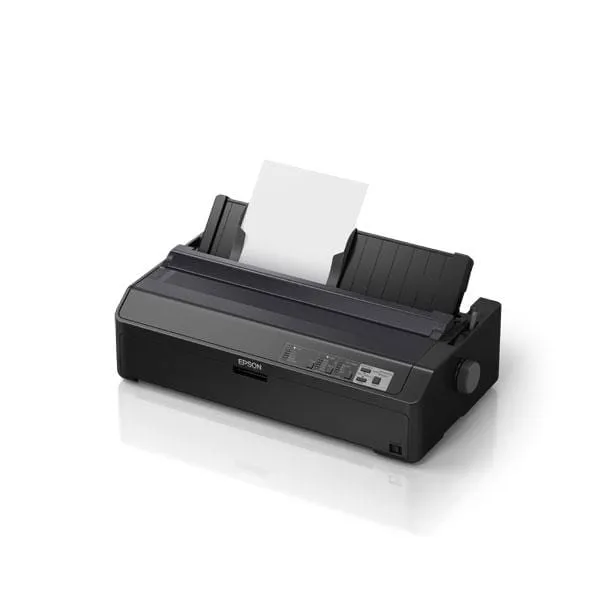

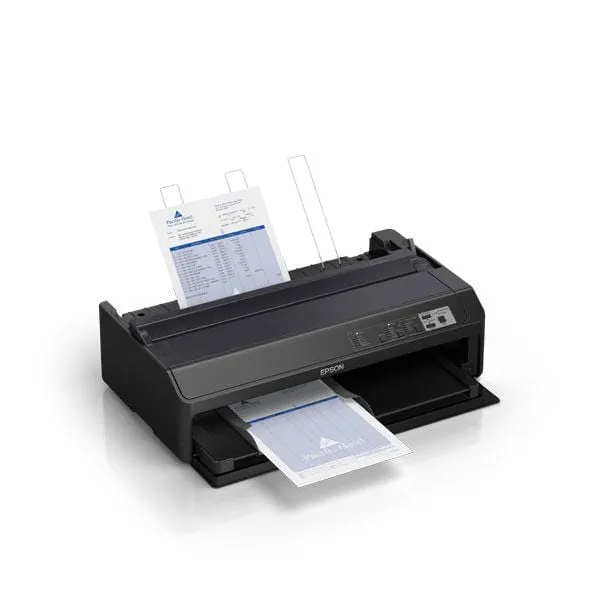

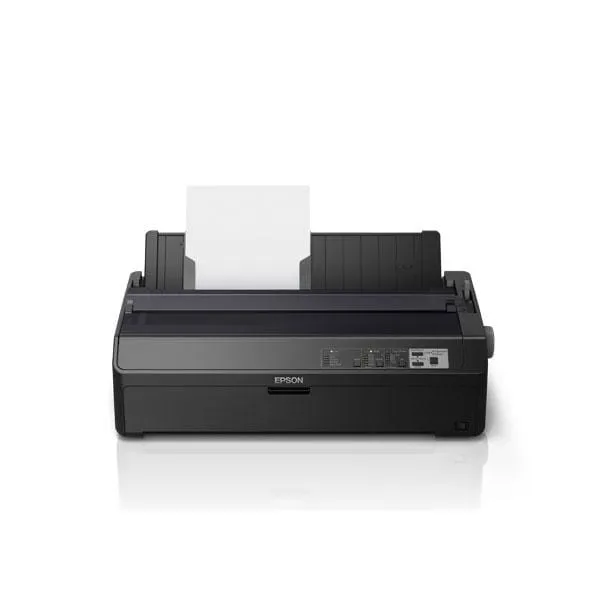

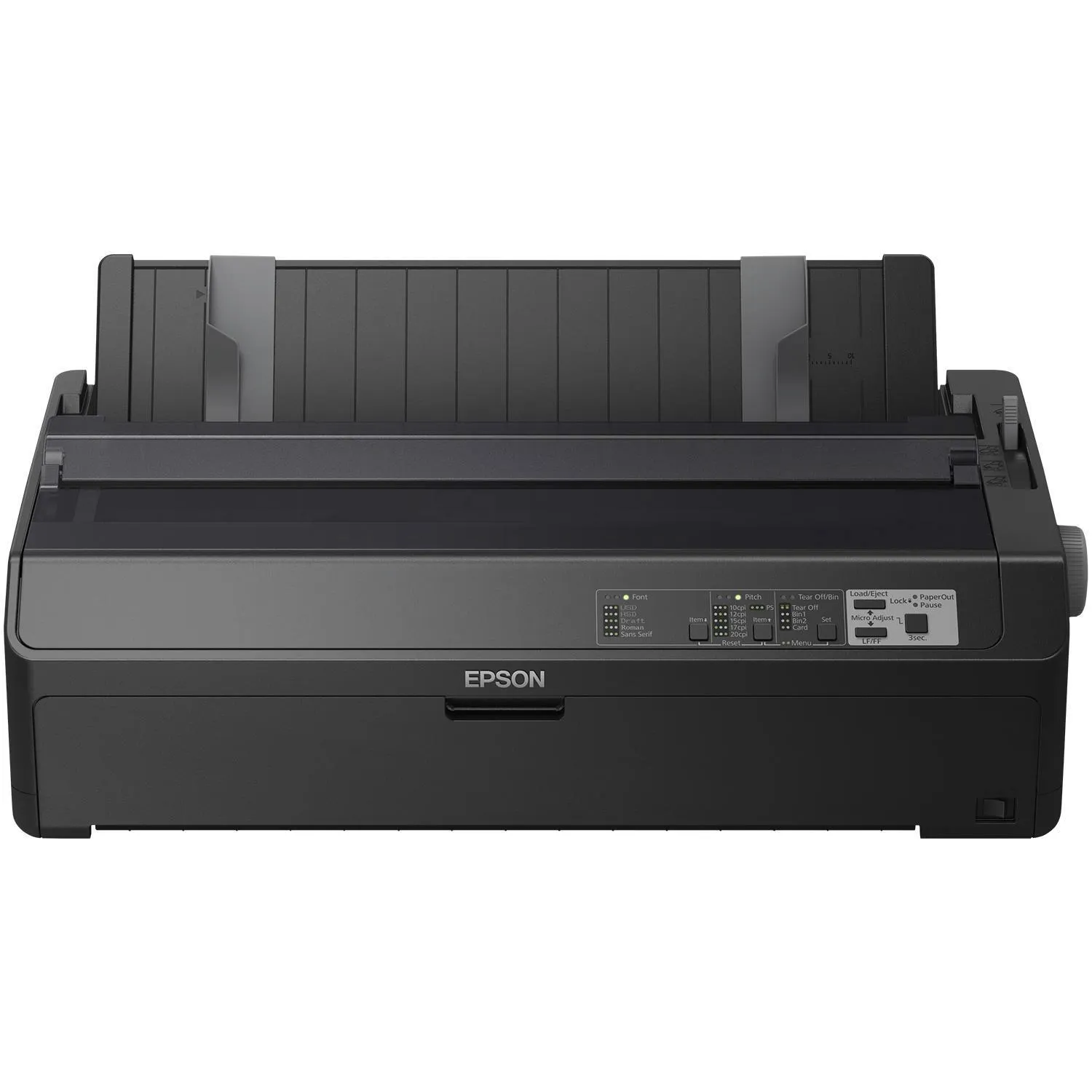

Epson FX-2190IIN 9-pin 738 Cps Dot Matrix Printer C11CF38402A0
Fast nine-pin dot matrix printer offering outstanding reliability and an extremely low TCO, as well as network capability.
The FX-2190IIN is a network high-volume, low TCO 136-column dot matrix printer designed for faster, more reliable network printing. A contemporary new design and smaller footprint make it an easy upgrade.
Market-leading print speeds
The FX-2190IIN offers an improved USD (ultra speed draft) speed of 738 characters per second at 12 characters per inch, making a real difference to high-volume print runs such as stock reports, large batches of invoices or freight documents.
Outstanding reliability
Building on Epson's established and reliable dot matrix technology, the new range of printers improves the mean time between failures by 25 percent. This delivers 25,000 of power-on hours, ideal for challenging conditions where regular maintenance is not practical.
Smaller footprint
Epson's new range of dot matrix printers has a refreshed design with a smaller footprint - depth has been reduced to just 320mm - making it easy to place into a business environment.
Network capability
This is a network model which supports both serial and Ethernet connections for enhanced connectivity.
Specifications:
Printing Method: Impact dot matrix
Number of Pins: 9 pins
Number of columns: 136 columns
Pins: 18 Needles (2 x 9)
Power consumption: 55 Watt, 10 Watt (standby)
Supply Voltage: AC 198 V - 264 V
Product dimensions: 612 x 375 x 177 mm (Width x Depth x Height)
Product weight: 8,37 kg
Supported Temperature: Operation 5° C - 35° C, Storage -30° C - 60° C
Supported Humidity: Operation 10% - 80%, Storage 30% - 60%
Mean Time Between Failures: 25.000 hours
Print Head Life: 400 Million Strokes/Wire
Fonts: Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional)
Noise Level: Operation (Roll): 55 dB (A)
Ribbon Yield: 12 characters Black Draft
Print
Printing Speed: HighSpeed-Draft: 10 cpi: 612 chars/s, Draft: 10 cpi: 463 chars/s, NLQ: 10 cpi: 115 chars/s, Ultra Speed-Draft: 12 cpi: 738 chars/s
Barcodes: Coda bar (NW-7), Code 128, Code 39, Industrial 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E
Carbon Copies: 6 plus one original
Character Sets: 42
Character Tables: PCAPTEC, PC437, PC708, PC720, PC850, PC858, ISO-8859-1, Roman 8, Italic
Printing Resolution: 240 x 144 DPI
Connectivity
Interfaces: USB - compatible with USB 2.0 specification, Bidirectional parallel, Ethernet interface (100 Base-TX / 10 Base-T)
Paper / Media Handling
Document Feed: Single sheet front and rear, Continuous media front and rear, Paper output rear
Paper Formats: Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Envelopes, Cardboard
Paper Thickness Continuous Paper: 0,46 mm
Paper Thickness Label Base Sheet: 0,46 mm
Paper Thickness Multi Part: 0,12 mm - 0,46 mm
Paper Thickness Single Sheet: 0,06 mm - 0,14 mm
